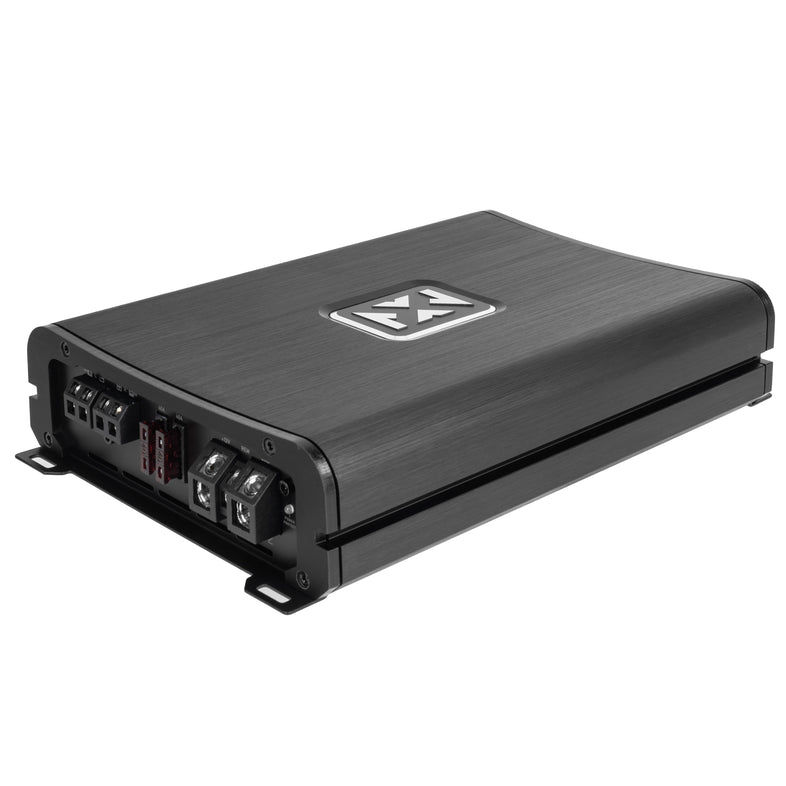

840W RMS V-Series Full-Range Class-D 2-Channel Amplifier (Marine Certified)

Product Details:
Marine Certified V Series Class D 2 ohm Stable 2-Channel Amplifier
RMS Power Rating:
4 ohm: 300 watts x 2 channel
2 ohm: 420 watts x 2 channel
Bridged: 840 watts x 1 channel @ 4 ohm
Total RMS power output: 840 watts
LED Indicators: Power and Protect lights
Conformal Coated Marine Grade Circuit Board
Platinum-plated Power and Speaker terminals
Includes a Wired Bass Level Remote Control
Balanced differential inputs eliminate noise picked up by signal cables
Speaker-Level (High-Level) Inputs
RCA Pre-Amp Outputs
Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
Input sensitivity: 0.2 - 18 volts
Frequency Response: 20 - 20000 Hz
Total Harmonic Distortion (THD): 0.3%
Signal to Noise Ratio: >85 dB
x1 and x10 Crossover Multiplier
Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
Variable low-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
Fuse Rating: 80A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 10.32" L x 6.81" W x 2.05" H
1-year Warranty from the Original Purchase Date
MFR #: VAD8402v2
