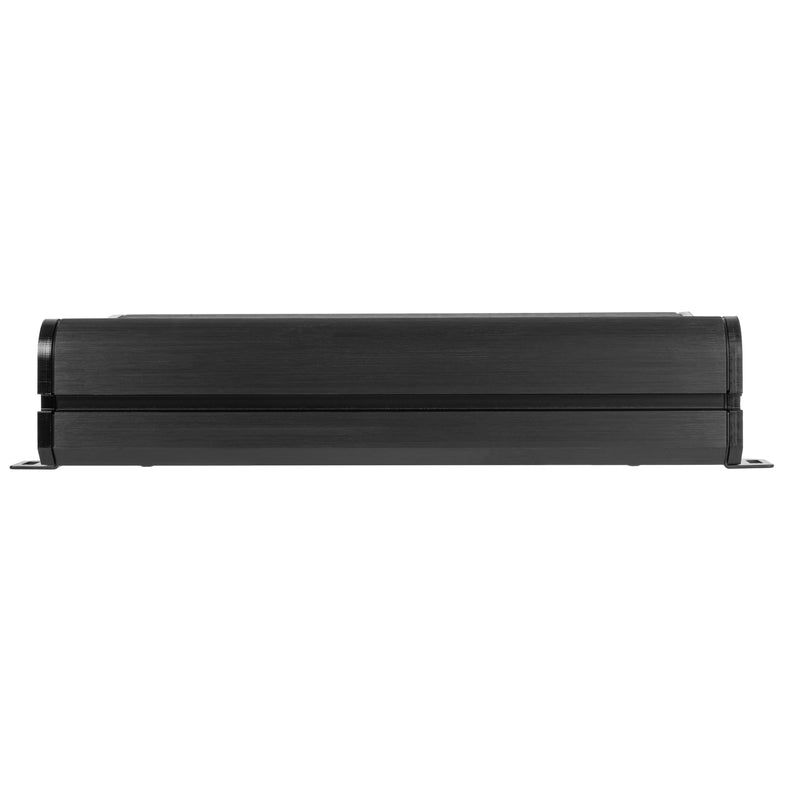

1000W RMS V-Series Full-Range Class-D 4-Channel Amplifier (Marine Certified)

Product Details:
Marine Certified V Series Class D 2 ohm Stable 4-Channel Amplifier
RMS Power Rating:
4 ohm: 150 watts x 4 channel
2 ohm: 250 watts x 4 channel
Bridged: 500 watts x 2 channel @ 4 ohm
Total RMS power output: 1000 watts
Conformal Coated Marine Grade Circuit Board
LED Indicators: Power and Protect lights
Platinum-plated Power and Speaker terminals
Includes a Wired Bass Level Remote Control
Balanced differential inputs eliminate noise picked up by signal cables
Speaker-Level (High-Level) Inputs
2 or 4 channel selectable input mode
RCA Pre-Amp Outputs
Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
Input sensitivity: 0.2 - 18 volts
Frequency Response: 20 - 20,000 Hz
Total Harmonic Distortion (THD): 0.3%
Signal to Noise Ratio: >85 dB
x1 and x10 Crossover Multiplier
Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
Variable low-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
Fuse Rating: 90A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 12.28" L x 6.81" W x 2.05" H
1-year Warranty from the Original Purchase Date
MFR #: VAD10004v2
